PART NO : TT0531
- 1100x90mm UNDRILLED
- 520kN / 60t VERTICAL LOAD
- KHDR1100
TYPICAL APPLICATIONS:
Heavy Duty, Severe Service
The Ballraces supplied by FUWA K Hitch are designed and manufactured to the highest manufacturing standards. The range of Ball races has been selected specifically to suit the Australian transport conditions and compliment the FUWA K Hitch range of turntables. The two designs are ideally suited to balance performance and value.
Note: The Ballraces can be supplied with the mounting holes already drilled.
Note: As Ballraces are considered “fixed” couplings, they do not require a CRN. When using a Ball race together with a Turntable, the lower D-rating of the two items, will become the D-rating of the assembly.
SIZE :
| MODEL | STYLE | SIZE (mm) |
CAPACITY Vertical Down Load) |
D-RATING (kN) |

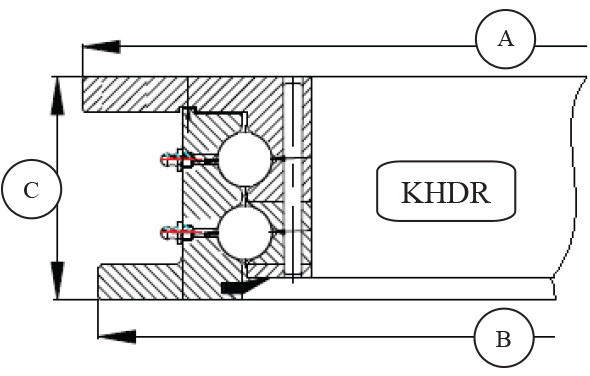

A (mm) |
B (mm) |
C (mm) |
WEIGHT (kg) |
| KHDR1100 | Slewing Rings |
90x1100 | 60,000kg | 520** | 1100 | 1100 | 90 | 111 |
Note: Specifications may change without notice. For detailed dimensions contact FKH.
**: The D-Rating is not considering the mounting of the Ball Race to the chassis. Suitable nuts and bolts are the responsibility of the Installer.
*Prices quoted are online only.
Check with your local Branch for in store pricing.

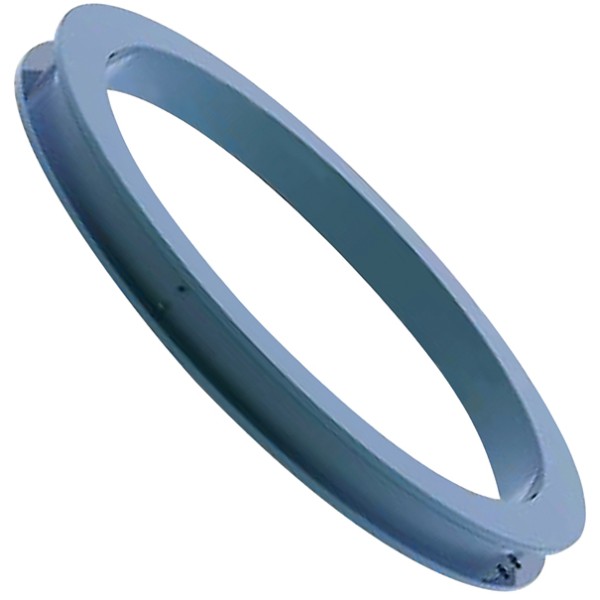

Fuwa K Hitch Un-Drilled Ballrace 90mm x 1100mm - KHDR1100
- Brand: Fuwa K Hitch
- Product Code: TT0531
- Availability: In Stock
- $3,740.00
-
$3,300.00
- Ex Tax: $3,000.00
