PART NO : FFS19513
​

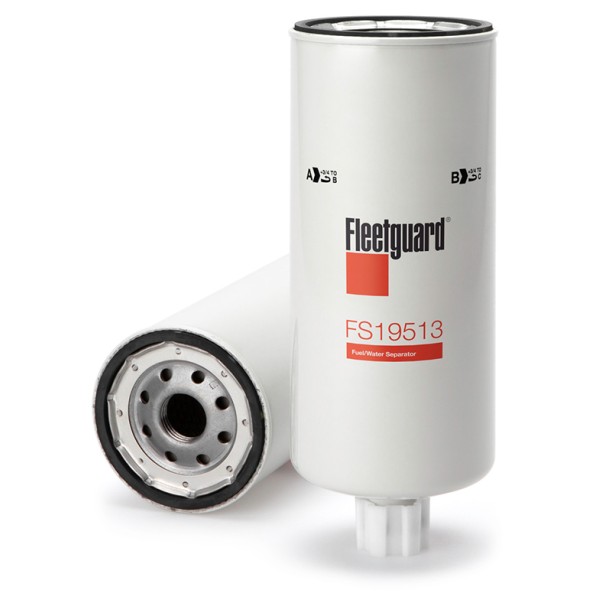

Cummins Fleetguard Fuel Water Separator Filter - Strainer
This filter may be used on Detroit applications as the primary filter where a spin on system has been fitted.

Overall Height:    248.41 mm (9.78 in)

Largest OD:        93.22 mm (3.67 in)

Seam OD:    94.23 mm (3.71 in)

Gasket OD:    88.65 mm (3.49 in)

GASKET INSIDE DIAMETER:    79.25 mm (3.12 in)

Thread Size:    1-12 UNS-2B

Standpipe:    No

EMULSIFIED WATER SEPARATION:    0 % (0 %)

FREE WATER SEPARATION:    95 % (95 %)

EFFICIENCY, TWA BY SAE J 1985:    97 % (97 %)

MICRON RATING BY SAE J 1985​:    20 micron (20 micron)

Primary Applications:
AC 12-921
AC T-921
AC TP1262
BALDWIN BF-1213
BALDWIN BF5813
CARQUEST 86418
DONALDSON FFP55-8010
GMC 25010780
GMC 25011910
GMC 25011911

Cross Ref:
390 23535985, 550 23512317, 550 25010780, 550 25011910, 550 25011911, 550 25012919, 550 25012920, 550 25165075, 680 KW1213, 875 8064271, ABP ABPN10GFS19513, BGA 95418, CAP 86418, CHP LFF902, FRL 42002115, GEM G1213, GRD G033418, HAS 101868, HAS 868, HAS FF1073, HAS FF868, KRA F183AR, LBF LFF8010, LBF LFF902, LBF LFP8010, NAP 3418, OKL 8024608, PRL F60025, PRL GP25, PRV 531390, PRV 531407, Q88 BF1213, Q88 BF5813, T52 12921, T52 T921, T52 TP1009, T52 TP1057, T52 TP1262, TMK 4521002, TRX 15504035, U30 PCS1144, U30 PCS5060G, U30 PS6830, U37 33418, U37 WF10045, V74 BF1213, V74 BF5813, VAG 133133511D, VOO VF2845, W26 FFP558010
