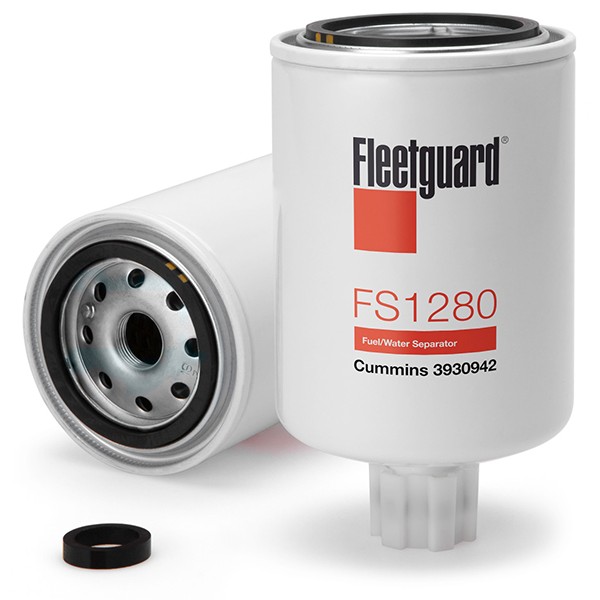

PART NO : FFS1280
​

Cummins Fleetguard Fuel Water Separator Filter - Spin-On
Not for Marine Applications

Overall Height:    164.85 mm (6.49 in)

Largest OD:        93.73 mm (3.69 in)

Seam OD:    93.47 mm (3.68 in)

Gasket OD:    71.88 mm (2.83 in)

GASKET INSIDE DIAMETER:    62.48 mm (2.46 in)

Thread Size:    13/16-18 UNS-2B

Standpipe:    No

EMULSIFIED WATER SEPARATION:    90 % (90 %)

FREE WATER SEPARATION:    90 % (90 %)

EFFICIENCY, TWA BY SAE J 1985:    96 % (96 %)

MICRON RATING BY SAE J 1985​:    20 micron (20 micron)

Primary Applications:
AC T-1068
AG CHEM EQUIPMENT 709936
AGCO 3903410
AGCO 72501531
AGCO AG709936
AVELING-BARFORD ABP3003062
BALDWIN BF1280
BALDWIN BF-787
BARKO HYDRAULICS 535-01140
BARKO HYDRAULICS MB1992366
CUMMINS 3890709
CUMMINS 3903410
CUMMINS 3930942
VOLVO 36846

Cross Ref:
340 1492250, 340 3890706, 340 3903410, 340 3925274, 340 3930942, 340 3935274, 340 4093730, 340 5268934, 340 5296139, 490 BF5T9155AB, 490 F3HZ9162A, 490 V88833, 550 25012001, 875 303437582, 875 36846, 875 43923093, 875 991203410, ABP ABPN10GFS1280, AFR ALG2236, AGC 3903410, AGC 72501531, AGC AG709936, AGM 709936, AGO J925274, AMM 49501000015, AMM ND090931, ATL 1092322100, ATL 1310032245, ATL 71029, AVE ABP3003062, BAR 53501140, BAR MB1992366, BEL 221392, BEL 221393, BEN 1821125, BGA 95357, BIT 225059, BIU 144114, BLU 538241, BLX 16400300, BMC 9P901850, BMC 9P909740, BOM 31780206, BOM 31780219, BUH 86019440, C14 913556, CAP 86357, CET A77470, CET E156170, CET J390942
