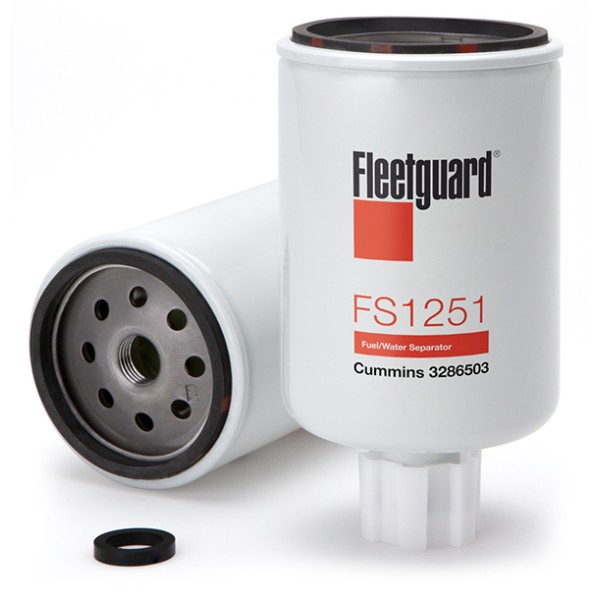

PART NO : FFS1251
​

Cummins Fleetguard Fuel Water Separator Filter - Spin-On

Overall Height:    142.9 mm (5.626 in)

Largest OD:        76.71 mm (3.02 in)

Seam OD:    76.45 mm (3.01 in)

Gasket OD:    69.09 mm (2.72 in)

GASKET INSIDE DIAMETER:    62.48 mm (2.46 in)

Thread Size:    M16 X 1.5-6H INT

Standpipe:   YES

EMULSIFIED WATER SEPARATION:    90 % (90 %)

FREE WATER SEPARATION:    90 % (90 %)

EFFICIENCY, TWA BY SAE J 1985:    96 % (96 %)

MICRON RATING BY SAE J 1985​:    20 micron (20 micron)

Primary Applications:
AGCO 72515734
AWD A4027606
AWD FSW4101
BALDWIN BF-1226
BLAW-KNOX 00164-822-00
BOSCH F002H20308
CASE J931062
CUMMINS 3286503
CUMMINS 3843760
CUMMINS 3903202

Cross Ref:
875 3134055, FRL 42000682, Q88 BF1226, U30 P8043
