PART NO : FFS19616
​

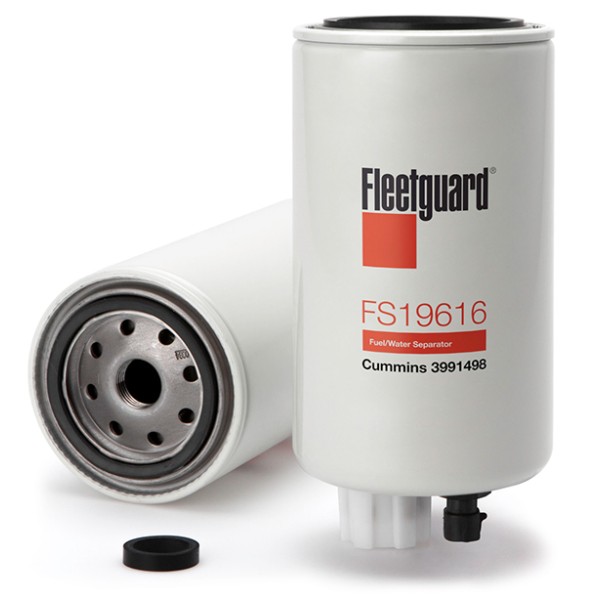

Cummins Fleetguard Fuel Water Separator Filter

Overall Height:    192.7 mm (7.587 in)

Largest OD:        93.83 mm (3.694 in)

Seam OD:    93.5 mm (3.681 in)

Gasket OD:    72 mm (2.835 in)

GASKET INSIDE DIAMETER:    62.48 mm (2.46 in)

Thread Size:    M20 X 1.5-6H INT

Standpipe:    Yes

EMULSIFIED WATER SEPARATION:    95 % (95 %)

FREE WATER SEPARATION:    95 % (95 %)

EFFICIENCY, TWA BY SAE J 1985:    98.7 % (98.7 %)

MICRON RATING BY SAE J 1985​:    5 micron (5 micron)

Primary Applications:
AMMANN 9501000045
AVIA 402617201
BOMAG 31701239
CARQUEST 86091
CASE ND116137
CUMMINS 3966227
CUMMINS 3991498
DONALDSON P550660
DYNAPAC 945912
INGERSOLL-RAND 13465547

Cross Ref:
340 3966227, 340 3991468, 340 3991498, 875 13465547, AGC 700723393, AMM 9501000045, ATL 57828790, AVI 402617201, BLU 30010285, BOM 31701239, CAP 86091, CET ND116137, CHP LFF9616, DYP 945912, HIF SN40547, HYS 1543356, JCB 32925595, KOM 6737716120, NAP 3091, NCC 8538841, U37 33091, U37 533091, V74 BF1352SP, V74 BF1352SPS, W26 P550660, W26 P550929, W44 13465547, YT1 580042635
