PART NO : FFS1254
​

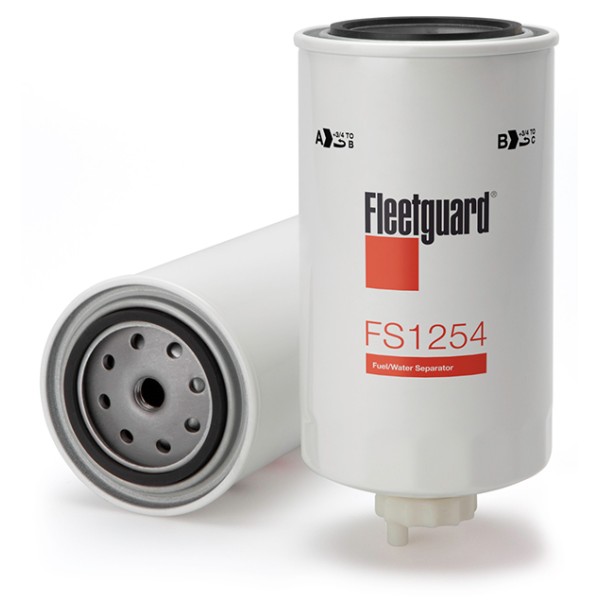

Cummins Fleetguard Fuel Water Separator Filter - Spin-On

Overall Height:    197 mm (7.756 inch)

Largest OD:        93.5 mm (3.681 inch)

Gasket OD:    70 mm (2.756 inch)

GASKET INSIDE DIAMETER:    62 mm (2.441 inch)

Thread Pitch:    1.5 mm per Thread

Thread Diameter:    14 mm (.551 inch)

Thread Class:    6H

Thread Form:    Metric

Flow Direction:    Outside In

Water In Fuel Sensor:    No

Drain Valve:    No

Bowl:    No

Hydrostatic Burst Minimum​:    1500 kPa (217.5 psi)

Primary Applications:
BALDWIN BF1217
COOPERS FSW4100
CROSLAND 5039
FIAT 8107486
FIAT 8107716
FIAT HITACHI 1930992
FRAM P5614
HENGST H70WK09
LUBERFINER LFF8981E
MAHLE KC186
