PART NO : FFS1241
​

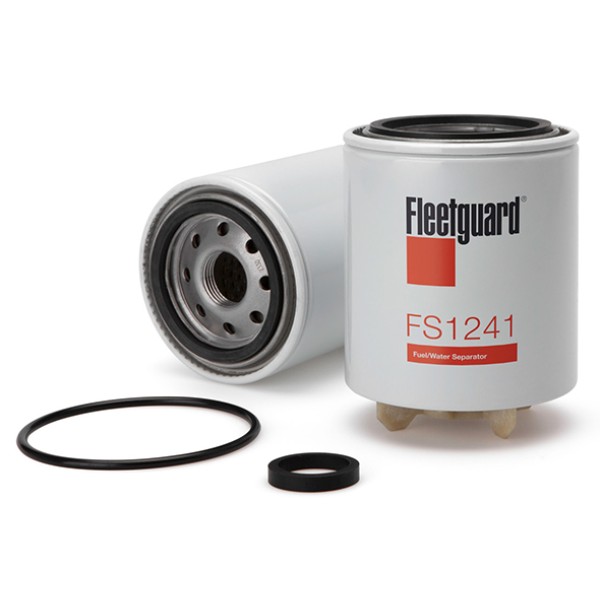

Cummins Fleetguard Fuel Water Separator Filter - Spin-On
Outside/In flow version of FS1234 Must be used with Fleetguard head. Bowl not included

Overall Height:    123.44 mm (4.86 in)

Largest OD:        93.04 mm (3.663 in)

Seam OD:    92.96 mm (3.66 in)

Gasket OD:    71.88 mm (2.83 in)

GASKET INSIDE DIAMETER:    62.48 mm (2.46 in)

Thread Size:    1-14 UNS-2B

Standpipe:    No

EMULSIFIED WATER SEPARATION:    90 % (90 %)

FREE WATER SEPARATION:    90 % (90 %)

EFFICIENCY, TWA BY SAE J 1985:    96 % (96 %)

MICRON RATING BY SAE J 1985​:    20 micron (20 micron)

Primary Applications:
CARQUEST 86421
CHAMP LFF8065
LUBERFINER 1623750
NAPA 3421
WIX 33421

Cross Ref:
CAP 86421, CHP LFF8065, LBF 1623750, NAP 3421, U37 33421, V74 BF1282O, VOO VF2867
