PART NO : FFS1240
​

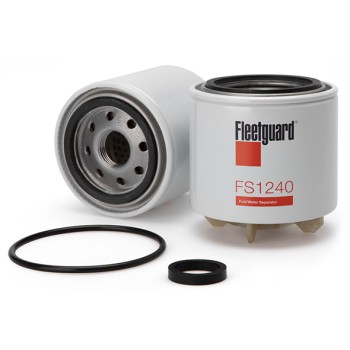

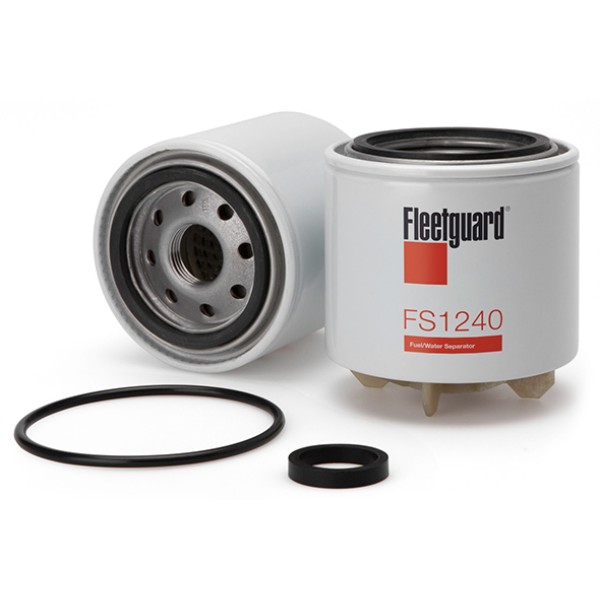

Cummins Fleetguard Fuel Water Separator Filter - Spin-On
Outside/In Flow Version of FS1233 Must be used with Fleetguard head. Bowl not included

Overall Height:    98.04 mm (3.86 in)

Largest OD:        93.04 mm (3.663 in)

Seam OD:    93.07 mm (3.664 in)

Gasket OD:    71.88 mm (2.83 in)

GASKET INSIDE DIAMETER:    62.48 mm (2.46 in)

Thread Size:    1-14 UNS-2B

Standpipe:    No

EMULSIFIED WATER SEPARATION:    90 % (90 %)

FREE WATER SEPARATION:    90 % (90 %)

EFFICIENCY, TWA BY SAE J 1985:    96 % (96 %)

MICRON RATING BY SAE J 1985​:    20 micron (20 micron)

Primary Applications:
AGCO WR37864
CHAMP LFF1240
FLEETGUARD 383187100S

Cross Ref:
AGC WR37864, CHP LFF1240, DGN DF1240, HIF SN21240, KOM 42N0411750, KOM 42N0411780, RNN RC583X, V52 F122B001, V52 F122BS001, VOO VF2031
