PART NO : FFS1242B
​

NOTE: This item is not always held in stock, so please allow an additional 3 - 10 days to process & ship.

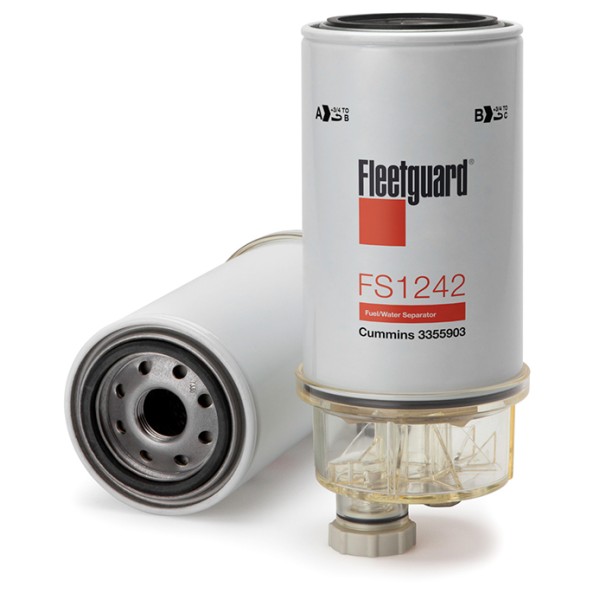

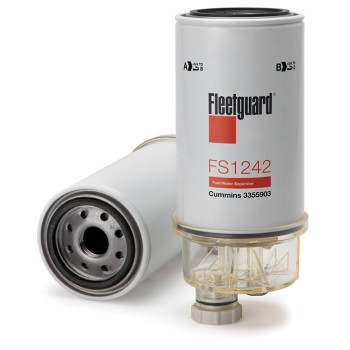

Cummins Fleetguard Fuel Water Separator Filter & Bowl Assembly - Spin-On

Overall Height:    230.81 mm (9.087 in)

Largest OD:        99.57 mm (3.92 in)

Seam OD:    94.49 mm (3.72 in)

Gasket OD:    71.98 mm (2.834 in)

GASKET INSIDE DIAMETER:    62.53 mm (2.462 in)

Thread Size:    1-14 UNS-2B

Standpipe:    No

EMULSIFIED WATER SEPARATION:    90 % (90 %)

FREE WATER SEPARATION:    90 % (90 %)

EFFICIENCY, TWA BY SAE J 1985:    96 % (96 %)

MICRON RATING BY SAE J 1985​:    20 micron (20 micron)

Primary Applications:
BALDWIN BF1321
BIG A 95431
BOMAG 31701061
CARQUEST 86431
CUMMINS 3355904
CHAMP LFF90011
FREIGHTLINER ABP32FRT01
HAMM 1236377
LIEBHERR 7381820
LUBERFINER LFF90013
RACOR B32001
RACOR S3201

Cross Ref:
FRL 42000678, Q88 BF1321
