PART NO : FFS1040
​

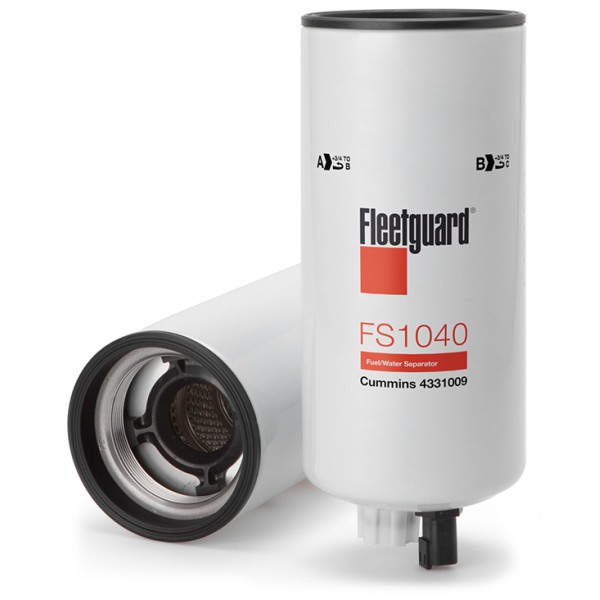

Cummins Fleetguard Fuel Water Separator Filter - Spin-On
Heavy Duty Protection with Optimum Life Suction Side Fuel with Combination WIF Sensor and drain valve. Stratapore Media

Overall Height:    293.98 mm (11.574 in)

Largest OD:        118.11 mm (4.65 in)

Seam OD:    118.01 mm (4.646 in)

Gasket OD:    118.87 mm (4.68 in)

GASKET INSIDE DIAMETER:    101.6 mm (4 in)

Thread Size:    M85 X 2-7H INT

Standpipe:    NO

EMULSIFIED WATER SEPARATION​:    95 % (95 %)

FREE WATER SEPARATION:    95 % (95 %)

EFFICIENCY, TWA BY SAE J 1985:    98.7 % (98.7 %)

MICRON RATING BY SAE J 1985:    25 micron (25 micron)

Primary Applications:
BALDWIN BF1277-SP
BUHLER 86034027
CASE 419858A1
CUMMINS 3101872
CUMMINS 4010651
DONALDSON P551040
FRAM PS8688
HASTINGS FF1151-SPS
HITACHI E129779906
INGERSOLL-RAND 57645228

Cross Ref:
340 3101872, 340 4010651, 880 ABPN10GFS1040, ABP ABPN10GFS1040, BGA 95423, BUH 86034027, CET 419858A1, HAS FF1107SP, HAS FF1151SPS, HIF SN40549, HIT E129779906, NHD 441701A1, PRL F75326, Q88 BF1277SP, Q88 BF1277SPS, RNN RC552X, TRX 6002142, U30 PS8688, V74 BF1277SP, V74 BF1277SPS, VOO VF2821, W26 P551040, W26 P551047, W26 P903234, W44 54662036, W44 57645228
