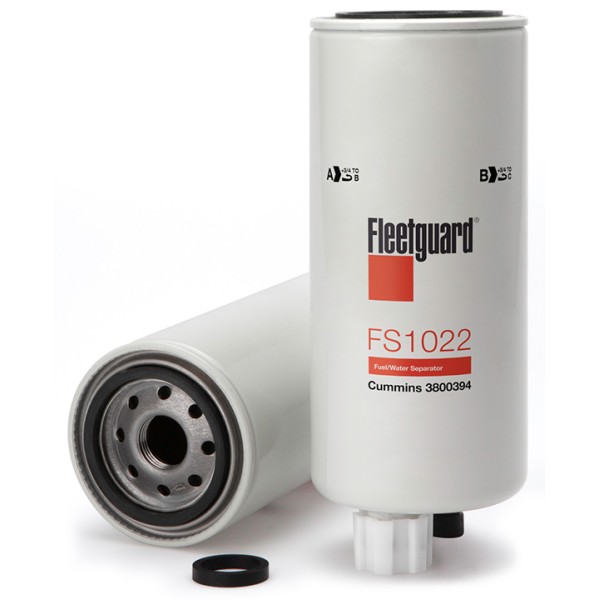

PART NO : FFS1022
​

Cummins Fleetguard Fuel Water Separator Filter - Spin-On
Cummins ISC engine Includes WIF sensor port Stratapore Media

Overall Height:    238.3 mm (9.382 in)

Largest OD:        93.83 mm (3.694 in)

Seam OD:    93.5 mm (3.681 in)

Gasket OD:    71.88 mm (2.83 in)

GASKET INSIDE DIAMETER:    62.48 mm (2.46 in)

Thread Size:    1-14 UNS-2B

Standpipe:    Yes

EMULSIFIED WATER SEPARATION​:    95 % (95 %)

FREE WATER SEPARATION:    95 % (95 %)

EFFICIENCY, TWA BY SAE J 1985:    98.7 % (98.7 %)

MICRON RATING BY SAE J 1985:    10 micron (10 micron)

Primary Applications:
 AGCO 72511906; BALDWIN BF1272-SP; BALDWIN BF1272SPS; CARQUEST 86422; CASE J800394; CUMMINS 3800394; DONALDSON P551022; FRAM PS8689; HYUNDAI 11NA-70010; KOMATSU 6744-71-6040

Cross Ref:
340 3800394, 340 3944269, 340 3945066, ABP ABPN10GFS1022, AGC 72511906, BMC 9P917817, CAP 86422, CET J800394, CSH 84168948, FNG FCX9325, FRL 42031998, GON GPP1022S, HAS FF1108SP, HIF SN40514, HYU 11NA70010, KOM 6744716040, KRA FS355, LBF LFF1022, MCC MCJ800394, MNC 4136520, NAP 3422, Q88 BF1272SP, TRX 15500391, TSB DP010196, U30 PS8689, U37 33422, V74 BF1272SP, V74 BF1272SPS, W26 P551022, W26 P551122, W44 22177711, BBF1272SPS
