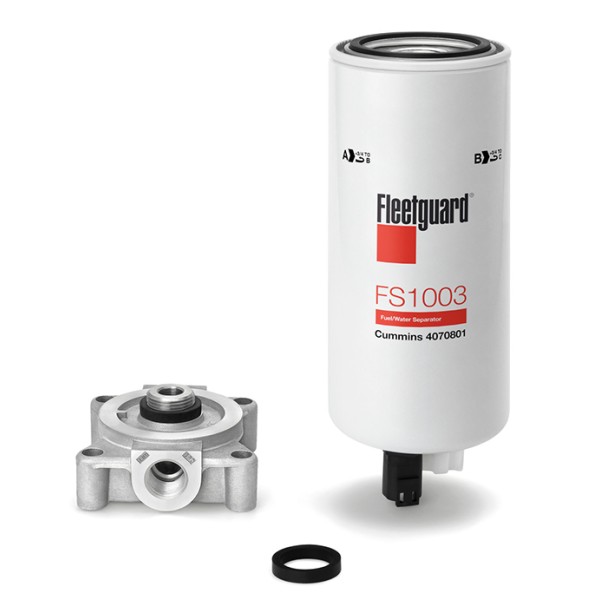

• Fleetguard Fuel Water Separator Filter - FS1003

PART NO : FFS1003
​


Cummins Fleetguard Fuel Water Separator Filter - Spin-On


Overall Height:    248.67 mm (9.79 in)

Largest OD:        93.73 mm (3.69 in)

Seam OD:    93.47 mm (3.68 in)

Gasket OD:    71.88 mm (2.83 in)

GASKET INSIDE DIAMETER:    62.48 mm (2.46 in)

Thread Size:    1-14 UNS-2B

Standpipe:    Yes

EMULSIFIED WATER SEPARATION​:    95 % (95 %)

FREE WATER SEPARATION   95 % (95 %)


EFFICIENCY, TWA BY SAE J 1985:    98.7 % (98.7 %)

MICRON RATING BY SAE J 1985:    10 micron (10 micron)


Primary Applications:
ATLAS COPCO 5580-0066-40
BALDWIN BF1263-SP
CARQUEST 86604
CUMMINS 4070801
CUMMINS 3406889
CHAMP LFF1003
DONALDSON P551003
DONALDSON P564872
FRAM PS8687
HASTINGS FF1164SPS
LUBERFINER LFF1003


Cross Ref:
340 3406889, 340 4070801, ATL 5580006640, BMC 9P919293, CAP 86604, CET 87302104, CET 87307432, CHP LFF1003, CNH 6904023, FRL 42017745, GON GPP1003, HAS FF1164SPS, KRA FS354, LBF LFF1003, NAP 3604, NHD 8900129805, PPM S6450550, SHI B222100000462, TAT 220747709902, U30 PS8687, U37 33604, V74 BF1263SP, V74 BF1293SPS, VOO VF2818, W26 P551003, W26 P564872, WRN 2056637, XCM WB002065


 RETURN TO FLEETGUARD FILTER MENU





Write a review

Note: HTML is not translated!
    Bad           Good

Fleetguard Fuel Water Separator Filter - FS1003

  • Brand: Fleetguard
  • Product Code: FFS1003
  • Availability: In Stock
  • $126.50
  • $100.10

  • Ex Tax: $91.00
