PART NO : FFS1001
​

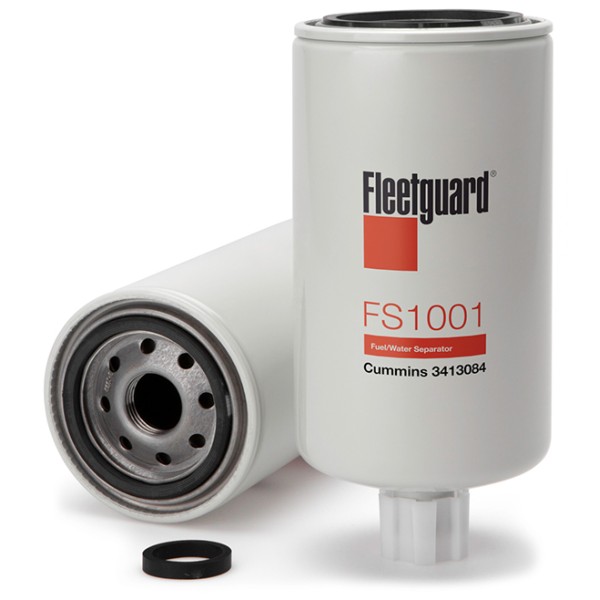

Cummins Fleetguard Fuel Water Separator Filter - Spin-On

Overall Height:    202.69 mm (7.98 in)

Largest OD:        93.47 mm (3.68 in)

Seam OD:    93.22 mm (3.67 in)

Gasket OD:    71.88 mm (2.83 in)

GASKET INSIDE DIAMETER:    62.48 mm (2.46 in)

Thread Size:    1-14 UNS-2B

Standpipe:    Yes

EMULSIFIED WATER SEPARATION​:    95 % (95 %)

FREE WATER SEPARATION:    95 % (95 %)

EFFICIENCY, TWA BY SAE J 1985:    98.7 % (98.7 %)

MICRON RATING BY SAE J 1985:    10 micron (10 micron)

Primary Applications:
ABC BUS 631204850
AC TP1292
AGCO 72515622
ATLAS COPCO 5541-7098-00
BALDWIN BF1259
BLOUNT 10064607
CARQUEST 86406
CASE 87674239
CATERPILLAR 2568753
CUMMINS 3329289
CUMMINS 3413084
TEREX 15271319

Cross Ref:
340 3413084, ABP ABPN10GFS1001, BGA 95407, CAP 86407, CET 335341A1, DAE 65125035016, HAS FF1147, HIF SN40528, KRA FS345, LBF LFF1001, MH1 WK10012X, NAP 3407, U30 PS8047, U37 33407, U37 533407, V74 BF1258
