PART NO : FFS1000
​

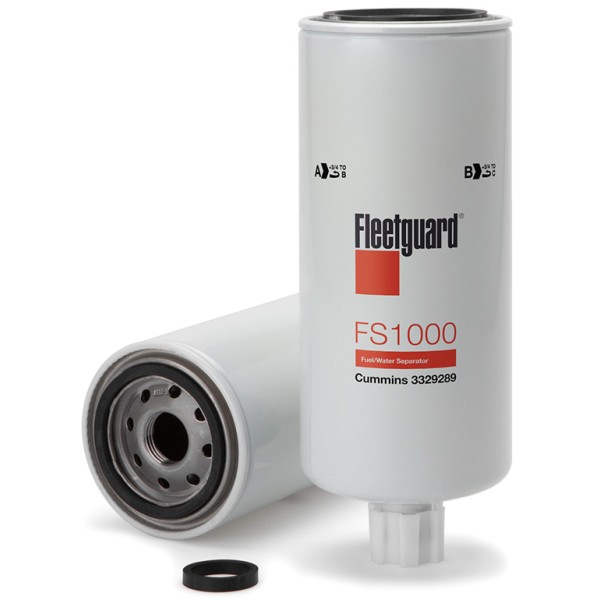

Cummins Fleetguard Fuel Water Separator Filter - Spin-On
Required on all Cummins Select and Quantum 19L Engines (Stratapore)

Fleetguard® FS1000 premium fuel water separator spin-on works to remove water and other particulates and ensures clean fuel is delivered to your engine.

Overall Height:    249.07 mm (9.806 in)

Largest OD:        93.22 mm (3.67 in)

Seam OD:    92.86 mm (3.656 in)

Gasket OD:    71.88 mm (2.83 in)

GASKET INSIDE DIAMETER:    62.48 mm (2.46 in)

Thread Size:    1-14 UNS-2B

Standpipe:    Yes

EMULSIFIED WATER SEPARATION​:    95 % (95 %)

FREE WATER SEPARATION:    95 % (95 %)

EFFICIENCY, TWA BY SAE J 1985:    98.7 % (98.7 %)

MICRON RATING BY SAE J 1985:    10 micron (10 micron)

Primary Applications:
ABC BUS 631204850
AC TP1292
AGCO 72515622
ATLAS COPCO 5541-7098-00
BALDWIN BF1259
BLOUNT 10064607
CARQUEST 86406
CASE 87674239
CATERPILLAR 2568753
CUMMINS 3329289
TEREX 15271319

Cross Ref:
BALDWIN BF1259
DONALDSON P55-1000
FRAM PS8048
PUROLATOR F71000
WIX 33406
