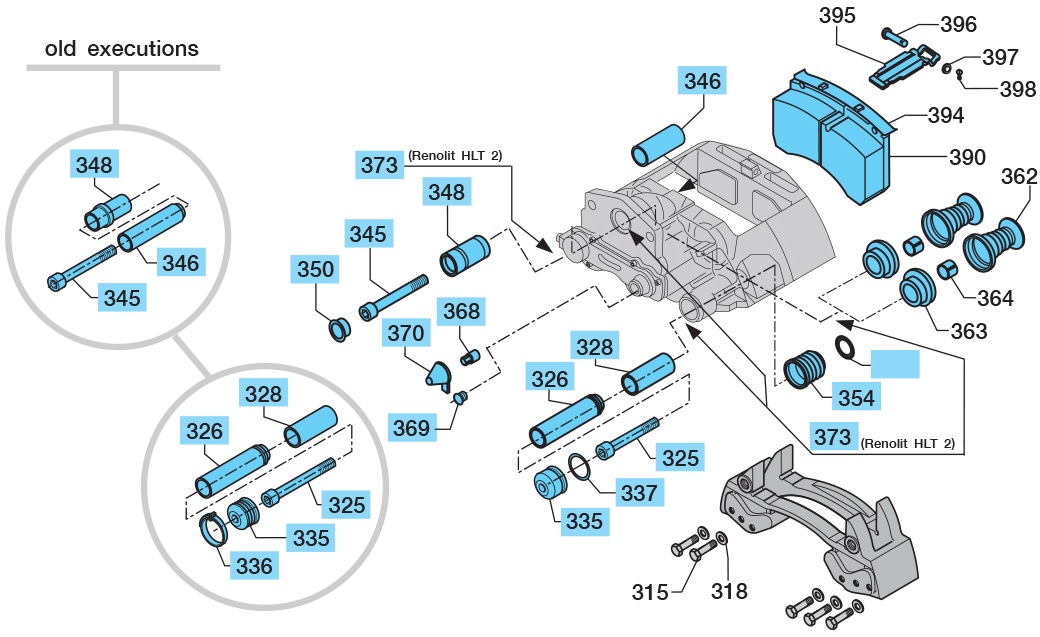

BPW SB 3745 - Caliper Repair Kits
| ITEM | PART NUMBER |
DESCRIPTION | QTY PER AXLE |
| 315 | 02.5029.87.20 |
Bolt (Torque 280-330Nm). |
10/4 |
| 02.5029.85.21 | Bolt (Torque 280-330Nm) to suit Caliper spacer. M 16 x 1.5 x 65 |
10 | |
| 02.5029.88.21 | Bolt Steer Axle (Torque 280-330Nm). M 16 x 1.5 x 60 |
4 | |
| 02.5051.10.21 | Bolt Steer Axle (Torque 280-330Nm). M 16 x 1.5 x 60 |
2 | |
| 318 | 02.5401.16.08 | Washer. Ø 17 | 10 |
| 315 | FB2830 | Guide pins and seal kit suits Caliper type A & B *See note right (Includes items 325 - 328, 335, 36, 345 - 348, 354, 355, 373) |
2 |
| FB2830 | Guide pins and seal kit suits Caliper type C (Includes items 325 - 328, 345 - 348, 350, 352, 373) |
2 | |
| FB2878 | Thrust pad and boot kit suits Caliper type A and B (Includes items 362 - 364) |
2 | |
| FB2879 | Thrust pad and boot kit suits Caliper type C (Includes items 362 - 364) |
2 | |
| FB4412-35MM | Kit adjuster adaptor and 35mm cap (includes 10x item 368 and 10x item 369) |
2 | |
| 0980106250-38mm | Kit adjuster adaptor and 38mm cap (includes 10x item 368 and 10x item 369) |
2 | |
| FB4450G | Brake Pad Kit (Includes items 368, 369, 370, 390, 394, 396, 397, 398) |
1 | |
| 368 | FB2859 | Adjuster adaptor | 2 |
| 369 | 02.1827.04.00 | Adjuster adaptor | 2 |
ROTORS TO SUIT
| PART NO. | DESCRIPTION | QTY PER AXLE |
| AP3212G | Rotor 10 stud 335mm PCD (ABS mounting) | 2 |
| AP3212 | Rotor 10 stud 335mm PCD | 2 |
| AP3200 | Rotor 10 stud 285mm PCD | 2 |
| AP3202 | Rotor 8 stud 275mm PCD | 2 |
| AP3202G | Rotor 8 stud 275mm PCD (ABS mounting) | 2 |
