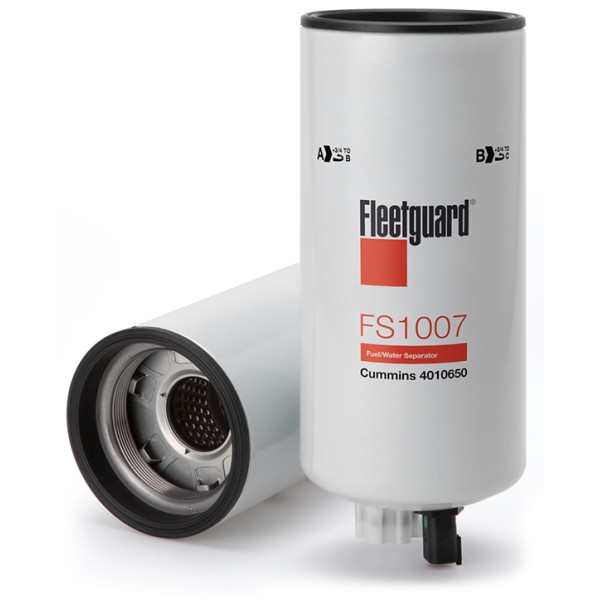

PART NO : FFS1007
​

Fuel / Water Separator - Spin-On

Overall Height:    293.98 mm (11.574 in)

Largest OD:    118.11 mm (4.65 in)

Seam OD:    118.01 mm (4.646 in)

Gasket OD:    118.87 mm (4.68 in)

GASKET INSIDE DIAMETER:    101.6 mm (4 in)

Thread Size:    M85 X 2-7H INT

Standpipe:    NO

EMULSIFIED WATER SEPARATION:    95 % (95 %)

FREE WATER SEPARATION:    95 % (95 %)

EFFICIENCY, TWA BY SAE J 1985:    98.7 % (98.7 %)

MICRON RATING BY SAE J 1985:    10 micron (10 micron)
