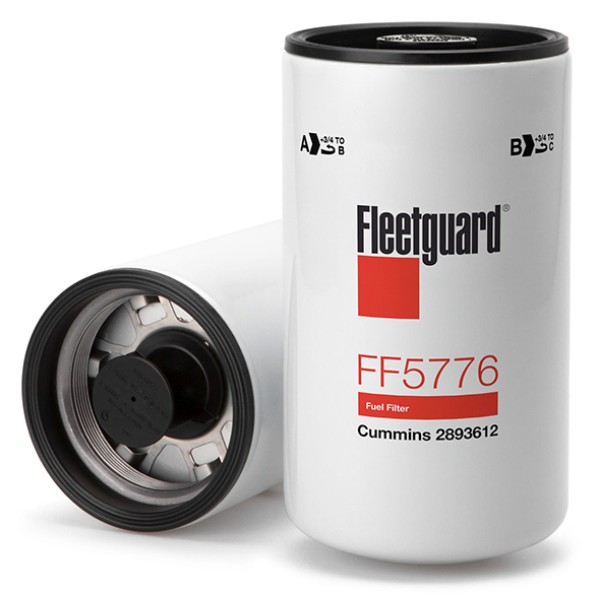

PART NO : FFF5776
​

Cummins Fleetguard Fuel Filter - Secondary
Cummins 2010 ISX Engines 15L and 16L engine Cummins 2010 ISX 11.9L engine

Overall Height:    226.52 mm (8.918 in)

Largest OD:        119.89 mm (4.72 in)

Seam OD:    119.89 mm (4.72 in)

Gasket OD:    118.87 mm (4.68 in)

GASKET INSIDE DIAMETER:    101.6 mm (4 in)

Thread Size:    M90 X 2-7H INT

Standpipe:    No

EFFICIENCY, TWA BY SAE J 1985:    98.7 % (98.7 %)

MICRON RATING BY SAE J 1985:    5 micron (5 micron)

Primary Applications:
CUMMINS 2864993
CUMMINS 2893612
CUMMINS 3685306
