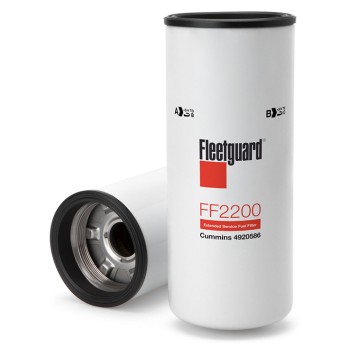

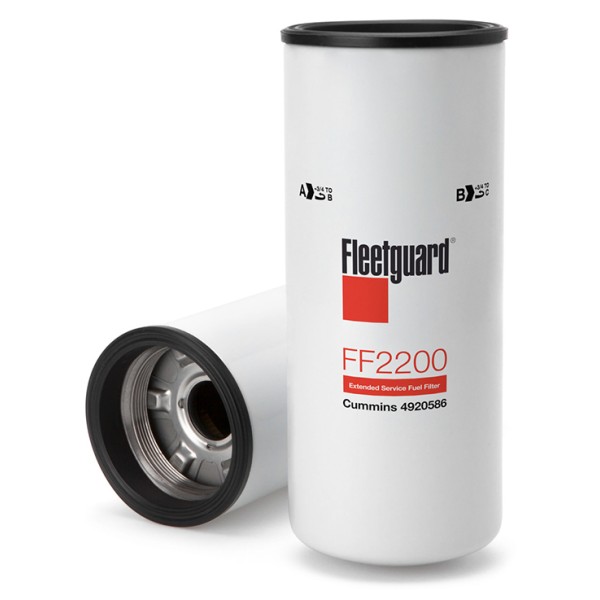

  • Fleetguard Fuel Filter - FF2200

PART NO : FFF2200


Cummins Fleetguard Fuel Filter

"Pressure-side" fuel filter for the new engine platform. Supports Enforcer Engine Program for Cummins. Stratapore Media.


Overall Height:    228.19 mm (8.984 in)

Largest OD:        93.98 mm (3.7 in)

Seam OD:    95.76 mm (3.77 in)

Gasket OD:    97 mm (3.819 in)

GASKET INSIDE DIAMETER:    78.74 mm (3.1 in)

Thread Size:    M72 X 2-7H INT

Standpipe:    NO


EFFICIENCY, TWA BY SAE J 1985:    98.7 % (98.7 %)

MICRON RATING BY SAE J 1985​:    15 micron (15 micron)


Primary Applications:
CUMMINS 4088272
CUMMINS    4920586


Cross Ref:
340 4088272, 340 4920586, ABP ABPN10GFF2200, BGA 95711, CAP 86711, CHP LFF2201, FRL 42036583, HAS FF1154, LBF LFF2201, MH1 WK10005, NAP 3711, U30 P9644, U37 33711, U37 533711, V74 BF7766, V74 BK6440, W26 P552200, W26 P903233







Write a review

Note: HTML is not translated!
    Bad           Good

Fleetguard Fuel Filter - FF2200

  • Brand: Fleetguard
  • Product Code: FFF2200
  • Availability: In Stock
  • $36.08

  • Ex Tax: $32.80
