PART NO : FFF172
​

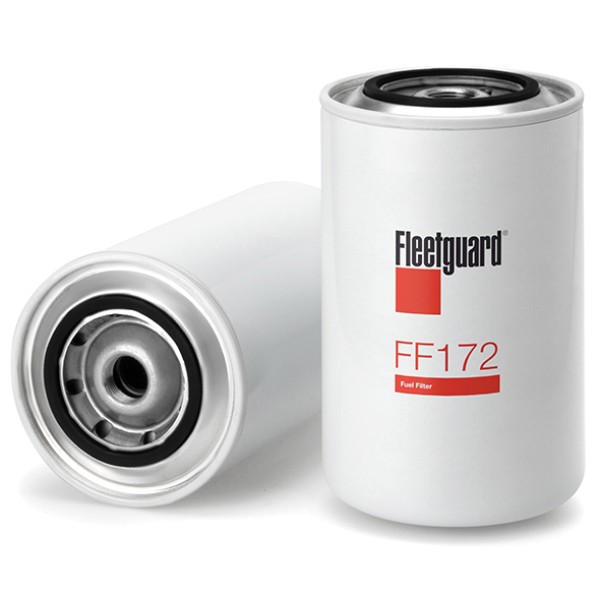

Cummins Fleetguard Fuel Filter - Primary Spin-On

Overall Height:    181.23 mm (7.135 in)

Largest OD:        107.67 mm (4.239 in)

Seam OD:    108.2 mm (4.26 in)

Gasket OD:    71.63 mm (2.82 in)

GASKET INSIDE DIAMETER:    62.59 mm (2.464 in)

Thread Size:    13/16-18 UNS-2B

Standpipe:    NO

EFFICIENCY, TWA BY SAE J 1858:    76 % (76 %)

MICRON RATING BY SAE J 1858:    20 micron (20 micron)

Primary Applications:
Mack 483GB219A

Cross Ref:
695 483GB219, 695 483GB219A, 695 483GB219B, 695 483GB219C, 695 483GB444, 695 483GB445, 695 484GB219A, ABP ABPN10GFF172, ARR PF172, BGA 519, BGA 95219, BGA 95219MP, CAP 86219, CAP 86219MP, CHP FP219F, CHP LFP219F, CYL PM464, DLX 345, FAM FCS25, FIL FC280US, FIL G1185EC, FLO PF172, FLU DP1109, GON GP83, GRD G033219, HAS 981, HAS F981, HAS FF981, KRA F158, LBF L64, LBF LFP219F, MH1 MF1111, MOP L57, NAP 3219, PAI FFF4590, PBR BG1512, PRL 6671856, PRL F60031, PRL PER31, PRR PF345, Q88 BF877, Q88 BF877B, QS1 QS1109, RNN RC584X, RNT 41035000541768, RNT 5000541768, RYC Z46, SAS SP422M, T52 TP635, T52 TP935
