PART NO : ELLED151BAR                      ​

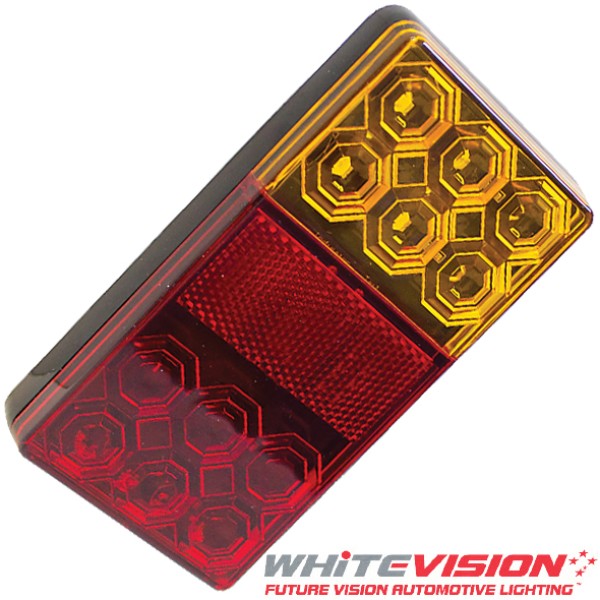

Whitevision’s all new CRL120 Series is the new modern design in the rear LED combination lamp with an ultra-low profile. Featuring 12 super bright, high-reliability LEDs, the advanced optics provide full form signal illumination for increased safety and awareness. Incorporating stop/tail/indicator / lic plate and reflector functions for an all-in-one package, making it the perfect fit for many OE and retrofit applications.

FEATURES :

• Highly aesthetic lens design
• Low profile dimensions to suit multiple applications
• Simple quick mounting design
• Integrated reflex reflector
• ADR compliant

SPECIFICATIONS :

Voltage:
12 or 10-30 V

Power:
Stop: 1.0Watt Tail: 0.2Watt Indicator: 1.0Watt NPL: 0.6Watt

Lens:
Polycarbonate

Housing:
ABS

Mounting:
Surface mount, sealed studs

Environmental:
IP68

CTA:
CRL120LH    CTA-060539
CRL120RH    CTA-060507

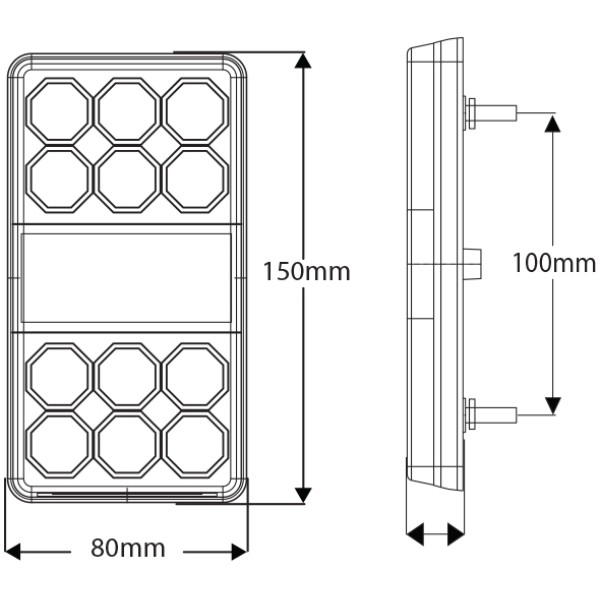

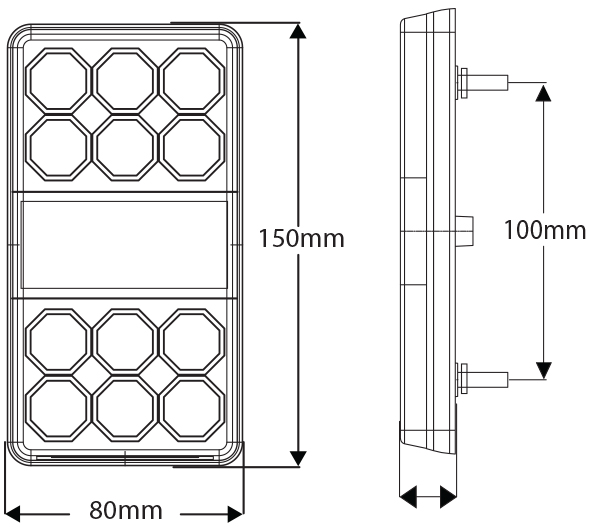

DIMENSIONS :

CRL120LEDLH
