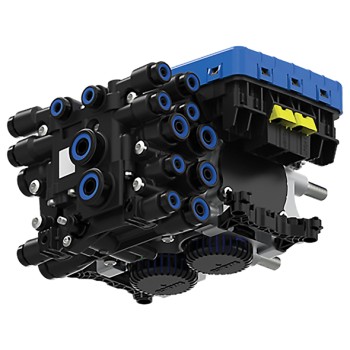

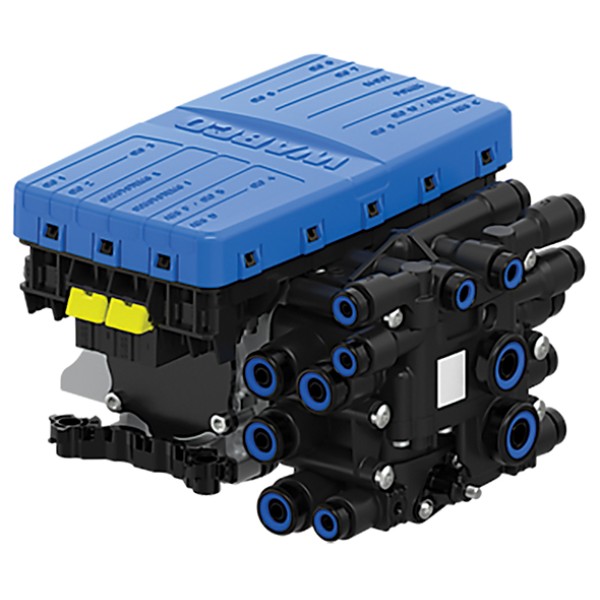

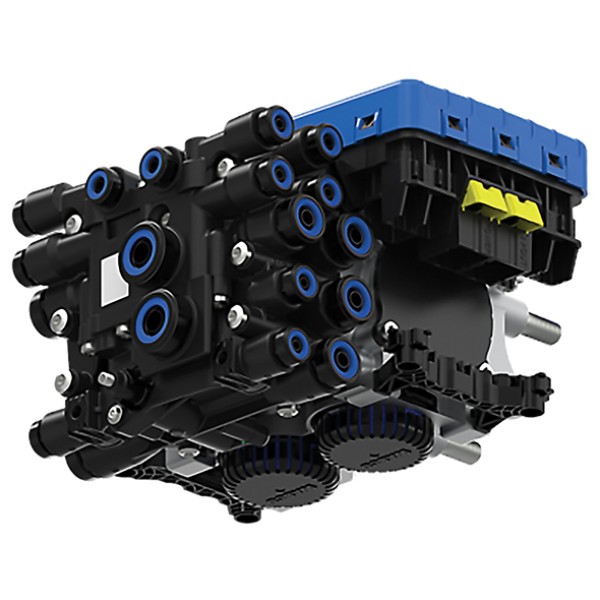

PART NO : AB8660
​

FEATURES:

• Electronic Brake Control Unit
• Available as a spare part or Fully compliant ADR Brake kit
• CAN Link compatible
• Trailer Stability Control functionality
• Load Sensing (LSV) programable
• Anti Lock Braking
• Auxiliary function outlets
• Control lift axle function
• Fittings available on request

​NOTE:

• Brake calculation and programming required
• End of Line procedure required after installation
• Brake valve will work if power cable not connected

MAINTENANCE:
The iEBS system does not require maintenance.

TECHNICAL SPECIFICATIONS:

Brand:    WABCO

Max. operating pressure:    9.0 bar

Mounting:    3x M12

Port thread 1:    M15 x 1.5

Port thread 21:    M12 x 1.5

Port thread 22:    M12 x 1.5

Port thread 3:    2 Integrated Silencer

Port thread 4:    M8 x 1

Port thread 5:    M8 x 1

Protection Class​:    IP 6K9K

System:    4S/2M+3d.iM

Temperature range:    -40°C to +65°C

Voltage (V)​:    24

Size:    400 x 280 x 295

Weight:    6.66kg

Download Outline Drawing :
