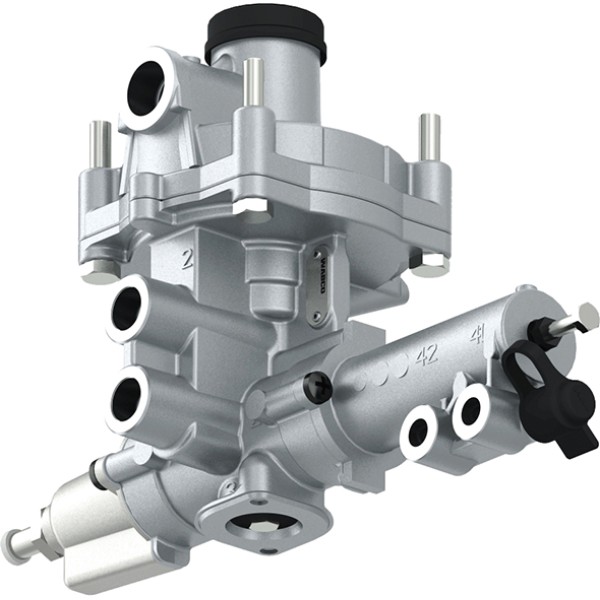

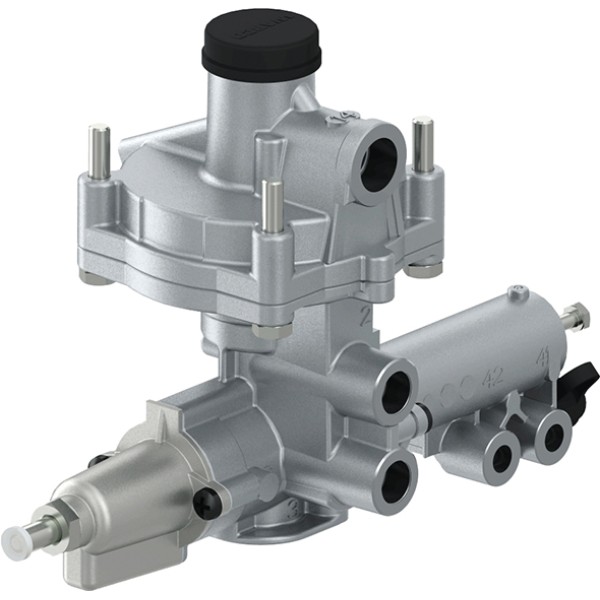

PART NO : AB6144

A load sensing valve for air suspension and air brakes adjusts brake pressure based on a vehicle's load to prevent rear wheel lock-up. It senses the load using the vehicle's air suspension pressure and modifies the service brake pressure accordingly, applying more force to a heavily loaded vehicle and less force to a lightly loaded one. This improves stability and braking performance by ensuring proper brake application for varying payloads.

TECHNICAL SPECIFICATIONS:

Brand : WABCO
Break point : 0.5 bar
Calculated Volume (dm³) : 8.6486
Distance between bolts : 84x84 mm
Max. operating pressure : 12.0 bar
Mounting : 4x M8
Port thread 1 : M22 x 1.5
Port thread 2 : 2x M16 x 1.5
Port thread 4 : M22 x 1.5
Port thread 41 : M12 x 1.5
Port thread 42 : M12 x 1.5
Port thread 43 : Test Connection
Regulating range : 0.7 to 3.8 bar
Regulating ratio : 1:8
Temperature range : -40°C to +80°C
Type : Pneumatic
Type of operation : Static
Size : 308 x 195 x 144mm
Weight : 1.907kg
