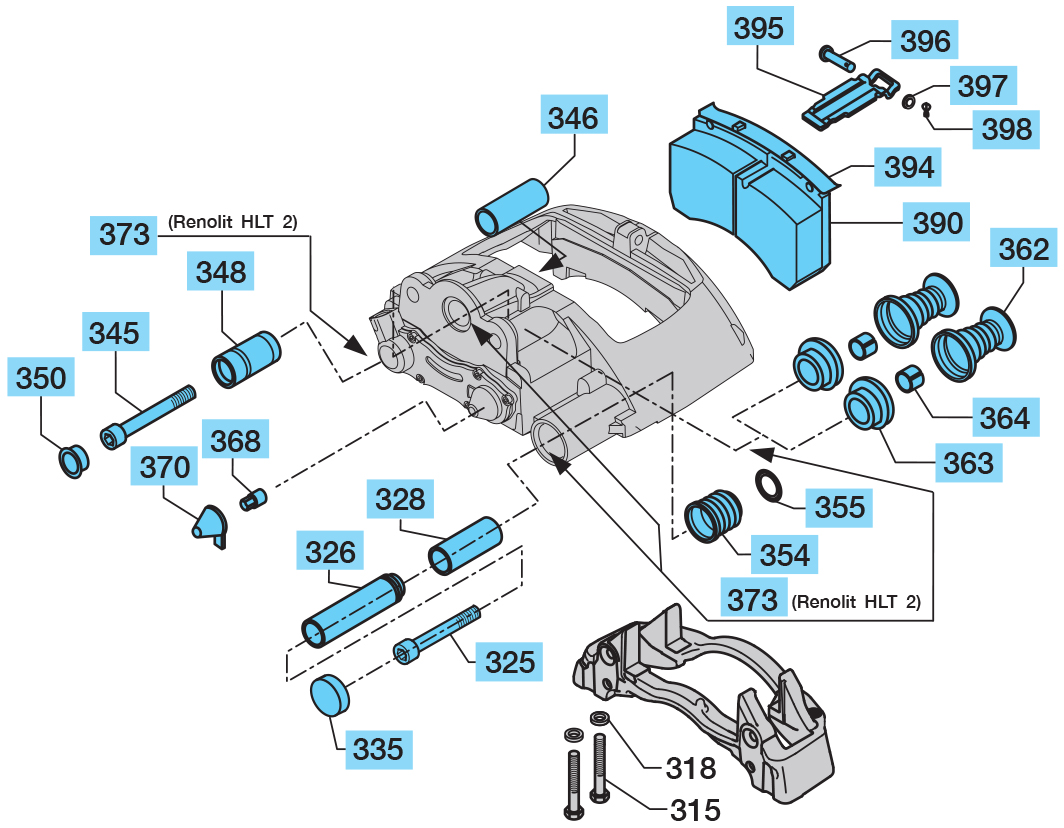

BPW SB 3745T / SB 4309T - Caliper Repair Kits
| ITEM | PART NUMBER | DESCRIPTION | QTY PER AXLE |
|
| SB3745T | SB4309T | |||
| 315 | CH0549G | Caliper Mount Bolt. M16x1.5x97-12.9. |
8 | |
| 318 | 02.5401.16.08 | Washer. Ø 17mm. | 8 | |
| KITS | FB2830 | Guide pins and seal kit for calipers with steel plate* (Includes items 325 - 355, 373) |
2 | |
| FB2786 | Guide pins and seals kit for calipers with plastic plate* (Includes items 325 - 355, 373) |
2 | ||
| FB2892 | Loose bearing (“secondary guide pin”) kit (Items 345, 346, 348, 350, 373) |
2 | ||
| FB2879 | Thrust pad and boot kit (Items 362 - 364, 373) |
2 | ||
| FB4412-35MM | Kit adjuster adaptor and 35mm cap (includes 10x item 368 and 10x item 369) |
2 | ||
| 0980106250-38mm | Kit adjuster adaptor and 38mm cap (includes 10x item 368 and 10x item 369) |
2 | ||
| FB4450G | FB4645 | Brake Pad Kit Axle Set **See note left (Items 368 - 370, 390, 394, 396 - 398) |
1 | |
| 368 | FB2859 | Adjuster adaptor | 2 | |
ROTORS TO SUIT
| PART NUMBER |
DESCRIPTION | DIMENSION | QTY PER AXLE |
| AP3202G | Rotor 8 stud 275mm PCD | SB3745T Ø 377mm | 2 |
| AP3204 | Rotor 10 stud 285mm PCD | SB4309T Ø 430mm | 2 |
| AP3242 | Rotor 10 stud 335mm PCD | SB4309T Ø 430mm | 2 |
Showing 1 to 7 of 7 (1 Pages)
