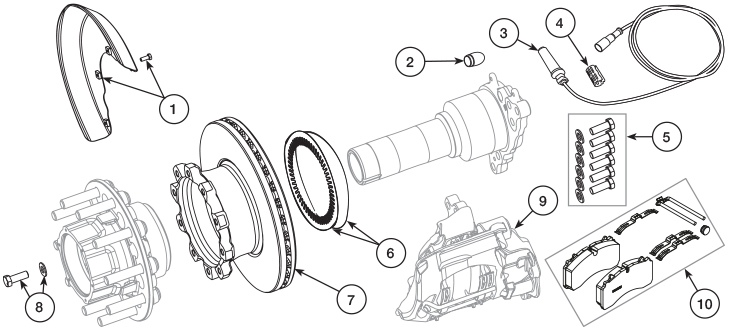

Hendrickson / Wabco MAXX22T HTD-415 - 22.5
[SARN 47436 FB]
| ITEM | PART NUMBER |
DESCRIPTION | ... | ITEM | PART NUMBER |
DESCRIPTION |
| 1 | S-35720-4415 | Kit Dust Shield, Inc Hardware Disc Brake Only |
... | 8 | CH0669 | Bolt & Washer. Rotor to Hub M16 x 50 x 2mm |
| 2 | B-36165 | Bush ABS Sensor Mounting | ... | 9 | FB4496 | Caliper RH Wabco Maxx22 Hendrickson (Inc. Pads) |
| 3 | FB2709 | Sensor And Clip Kit | ... | 9 |
FB4497 |
Caliper LH Wabco Maxx22 Hendrickson (Inc. Pads) |
| 4 | ... | KIT* | 98818-062 | Rotor & Hub Replacment Kit 285PCD |
||
| 5 | 98881-106 | Bolt, Caliper To Axle - M18 x 2.5 / Class 10 min |
... | 98818-063 | Rotor & Hub Replacment Kit 335PCD |
|
| 6 | 98814-023 | Pulse ring, ABS & Clip Kit | ... | 10 | FB4676 | Disc Pad Kit Pan 22 Wabco Suits Hendrickson Max22T |
| 7 | AP3237G | Rotor kit, 415mm. Includes Items 6, 8, 9 |
... |
*Kit includes hub with rotor, hub nut, gasket, bearings & fasteners.
Disc Brake Pads, Hendrickson MAX22T - 6402229272
PART NO : FB4676 ..
$233.20 $264.00 Ex Tax: $212.00
Disc Rotor Hendrickson - 415 Dia.
PART NO : Aftermarket : AP3237 Genuine : AP3237G ..
$363.00 $429.00 Ex Tax: $330.00
Sensor & Lead 400mm - Straight. General Purpose Truck & Trailer
PART NO : FB2705 ..
$77.00 $96.80 Ex Tax: $70.00
Showing 1 to 4 of 4 (1 Pages)
