PART NO : EL1560
​

The CRL220LED series is a multifunction rear combination lamp featuring advanced LED optical free-form reflector technology to achieve a highly styled robust lamp that can be customized to match modern vehicle and trailer designs. The CRL220LED series is made for heavy-duty use and includes a high-impact polycarbonate lens and strong ABS Base. ADR-compliant for stop, rear position, direction indicator and reverse in a single compact package, the CRL220 series uses SmartClip™ end covers which offer upgradable options. This feature allows for custom options including colored end clips, integration clips that combine two or three lamps as one, and end reflectors for a fully compliant rear lighting solution.

Suited to OEM & Commercial Applications.

FEATURES :

• Free-form optics
• High-reliability design - IP67
• Innovative end clip upgrades
• Easy customizing for specific applications
• Fully ADR compliant

SPECIFICATIONS :

Voltage:      9-33V
Power:        Stop:3W
Rear:            0.4W
Indicator:   3W
Reverse:      2.5W

Lens:            Polycarbonate

Mounting:   Base mount with Smart Clip™ covers

CTA:
CRL220    CTA-060795
CRL220R    CTA-060800

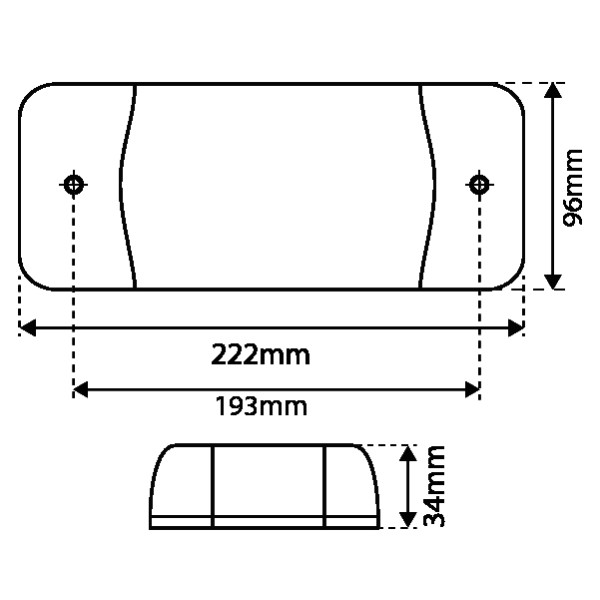

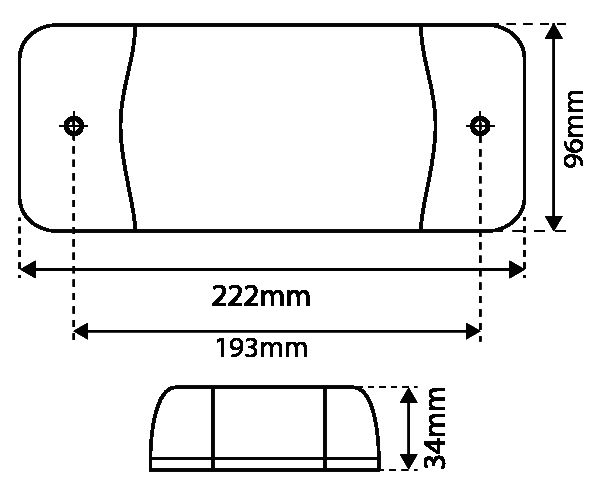

DIMENSIONS :

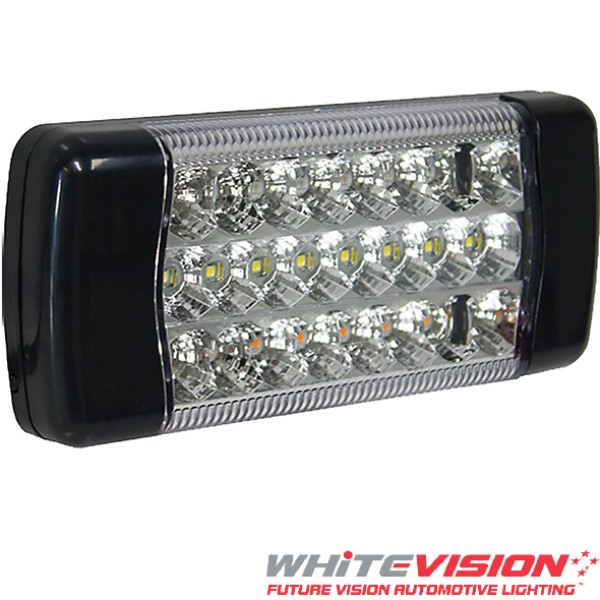

Whitevision CRL220RLED

*Prices quoted are online only.
 Check with your local Branch for in store pricing.
