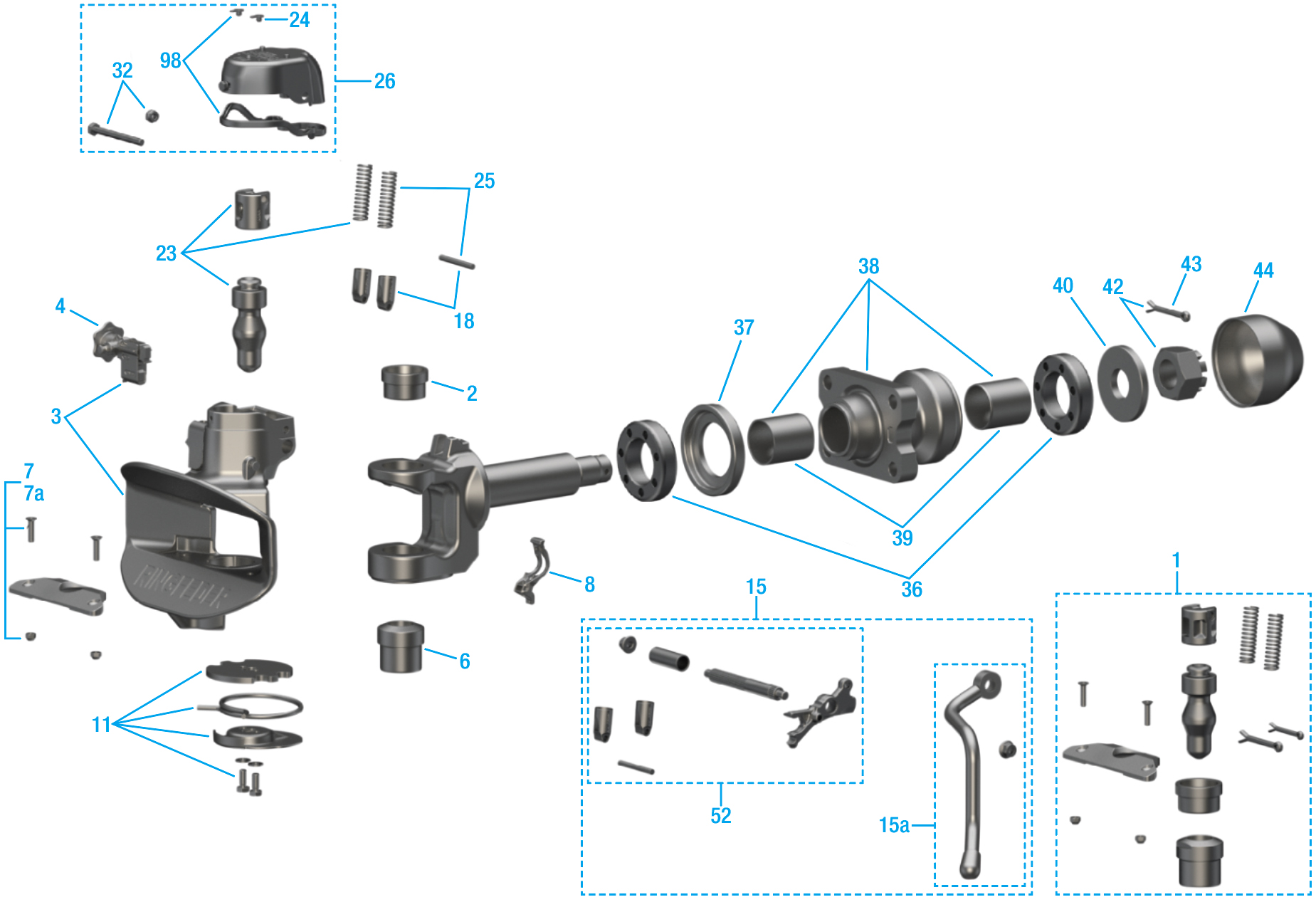

Tow Coupling Parts - Ringfeder 404 AUS B MSD
| ITEM | PART NO. | DESCRIPTION | ITEM | PART NO. | DESCRIPTION | |
| 1 | TC7506G | Repair Kit 404 AUS/5025 |
25 | 15991144 | Locking Spring 404 AUS/5025 |
|
| 2 | 15991139 | Top Guide Bushing 404 AUS/5025 |
26 | TC7507G | Cover Plate 404 AUS/5025 |
|
| 3 | 15991111 | Coupling Body MSD 404 AUS/5025 |
32 | 15990899 | Screw Kit, Cover Plate | |
| 4 | TC7214G | Ringfeder MSD Twist Lock | 36 | TC7208G | Rubber Spring Kit 404 AUS/5025 |
|
| 6 | 15991142 | Bottom Guide Bushing 404 AUS/5025 |
37 | 15991133 | Push Washer 404 AUS/5025 |
|
| 7 | TC7108G | Wear Plate Kit 404 AUS/5025 |
38 | 15991125 | Drawbar Guide Complete 404 AUS/5025 |
|
| 7a | TC7108GC | Casted Wear Plate (Kit) 404 AUS/5025 |
39 | TC7206G | Bearing Bush Kit 404 AUS/5025 |
|
| 8 | 15991014 | Lower Dust Sealing 404 AUS/502 |
40 | TC7207G | Pull Washer 404 AUS/5025 |
|
| 11 | TC7204G | Return Spring Kit 404 AUS/5025 |
42 | TC7122G | Castellated Nut M45 X 3 | |
| 15 | TC7170G | Hand & Locking Lever Kit 404 AUS B/5025 |
43 | CH7506G | Cotter Pin 8 X 80 FOR M45 | |
| 15A | TC7171G | Hand Lever B, New | 44 | TC7215G | Protecting Cap AUS / BR / INT |
|
| 18 | TC7179G | Spring Holder | 52 | TC7169G | Axle With Locking Lever 404 AUS/5025 |
|
| 23 | TC7205G | Coupling Bolt 404 AUS/5025 |
98 | 15990757 | Sealing Kit | |
| 24 | 15990758 | Lubrication Plug 10 Pcs |
Ringfeder 50mm Tow Coupling - 404 AUS B MSD 15991096
PART NO : TC7400G ..
$2,134.00 $2,310.00 Ex Tax: $1,940.00
Ringfeder Rear Nut Protector Cap - 96 / 101 / 202 / 303
PART NO : TC7215G ..
$42.90 $59.40 Ex Tax: $39.00
