PART NO : CAX0453
​

Heavy Duty Flex Seal hose clamps feature 3/4 inch wide stainless steel with a floating bridge,
Includes special long travel spring to accommodate larger changes in joint diamters.
Spring Design adds constant tension performance.

• 3/4” (19mm) band
• 1/4” (6.4 mm) Plated Steel T-bolt
• SAE Standard J1508 Type SLTB
• Torque Seeting 7.3 Nm

Capable of withstanding high tightening torques.
Ability to seal high pressure applications.
Torque Setting: 7.3 Nm

MATERIAL :
Stainless Steel

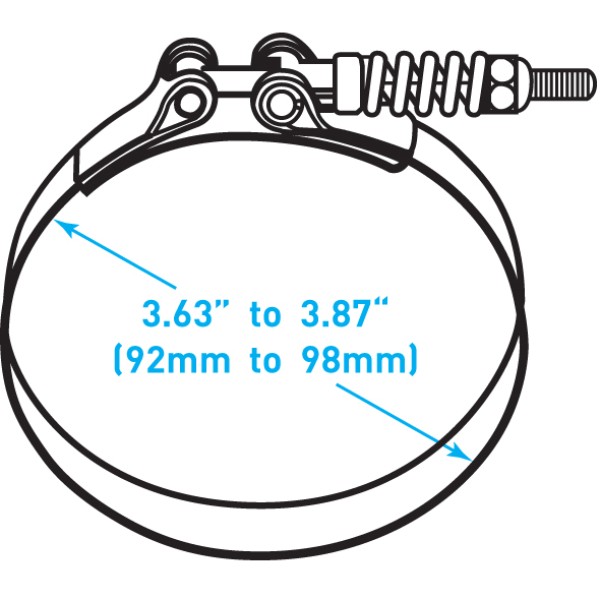

WORKING RANGE :
MAXIMUM I.D:  3.87”   /   98.3mm
MINIMUM I.D:  3.87"   /   92.2mm

APPLICATION:
Incorporate a compression spring to accommodate joint diameter changes resulting from hose set and thermal effects.
They are accepted industry wide for use on charge air and coolant system hose connections.
