ELH2SB017007201 / ELH2BA017006201 / ELH2ZR017008201

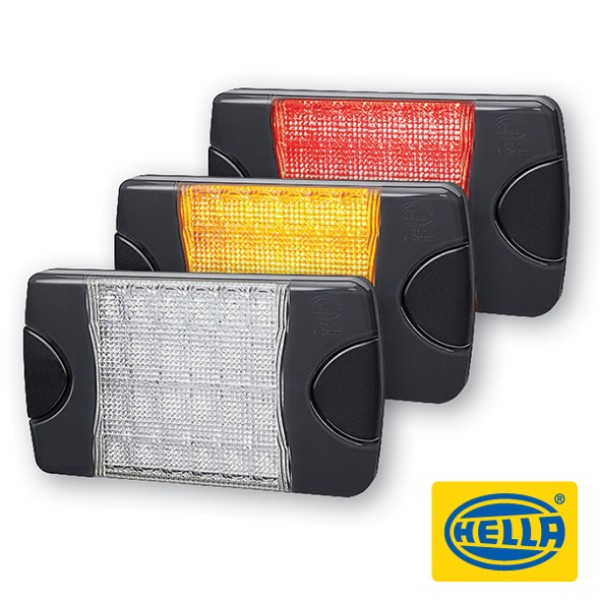

DURALED®‑S REAR SIGNAL LAMP SERIES (CLEAR LENS)

• New slim design
• Interchangeable with existing DuraLED®
• Fully sealed and submersible

PRODUCT FEATURES
FORVIA HELLA is enhancing its legacy of the DuraLED® product line by updating the iconic range with an elegant, slim design with clear lens, to meet the latest automotive design standards and international regulations.

The new slim DuraLED®‑S range offers a fully interchangeable, retrofit solution for existing models. It features the same completely sealed, maintenance-free “Fit & Forget by Design” construction, ensuring long-term durability, safety, and an ultra-long service life.

​TECHNICAL DETAILS :

Operating voltage range
Multi-voltage (9 – 33V)

Rated Voltage
12 and 24V

Power Consumption

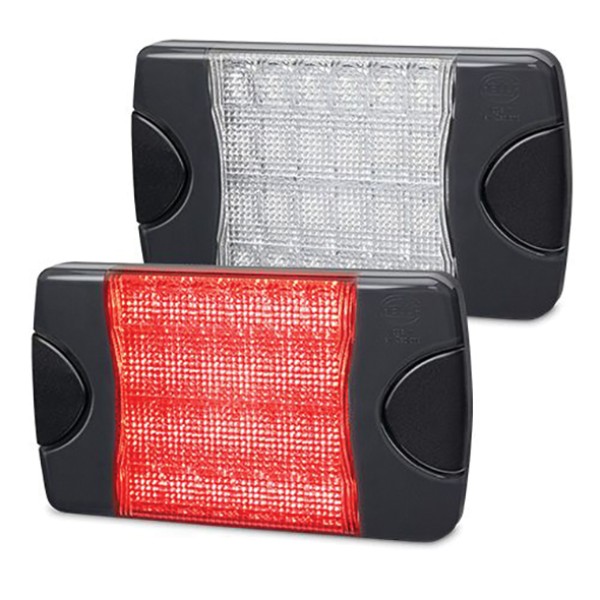

Tail light: 2W
Stop light: 8W

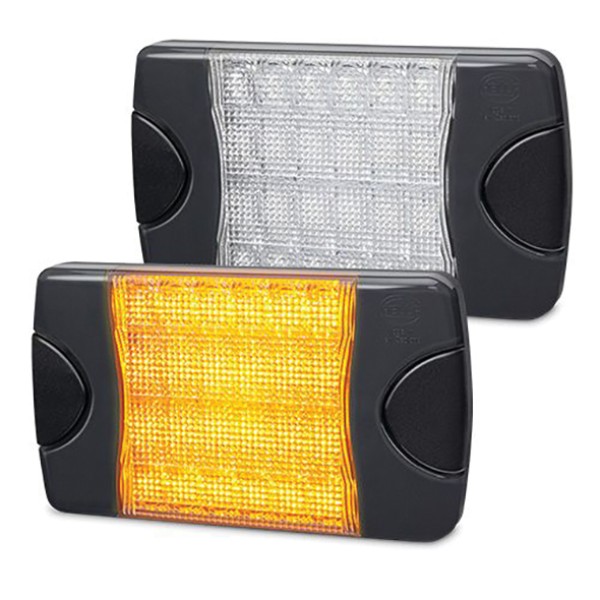

Rear direction indicator light: 7W

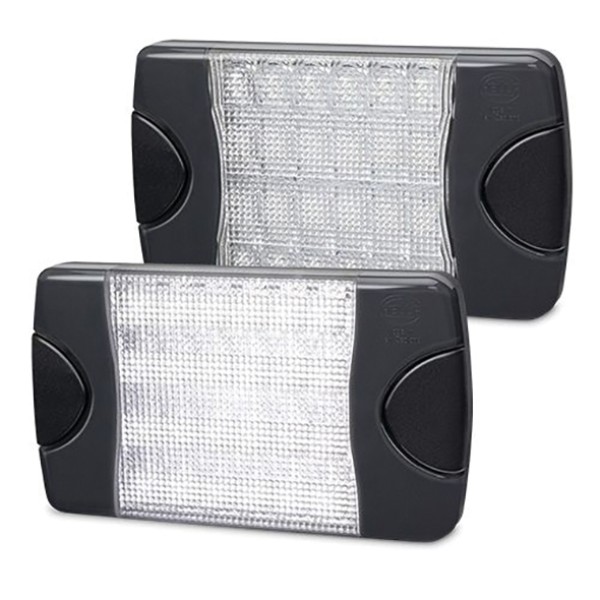

Reverse light: 10W

Light function
Tail light, stop light, rear direction
indicator light, reverse light

Light source
LED

Material Lens:
PMMA

Temperature Range
- 40°C to + 60°C

Protection class
IP 6K7, IP 6K9K

Approved
ECE-R10, ECE-R148, ADR / GGVSEB

Protection
Polarity reversal protection, Overvoltage protection

Specification
FORVIA HELLA standard 67101
Class 2.1, 2.2, 3.1, 3.2, 4.1, 5.1, 6.1,
6.3, 7.1, 7.2, 11.1, 11.22

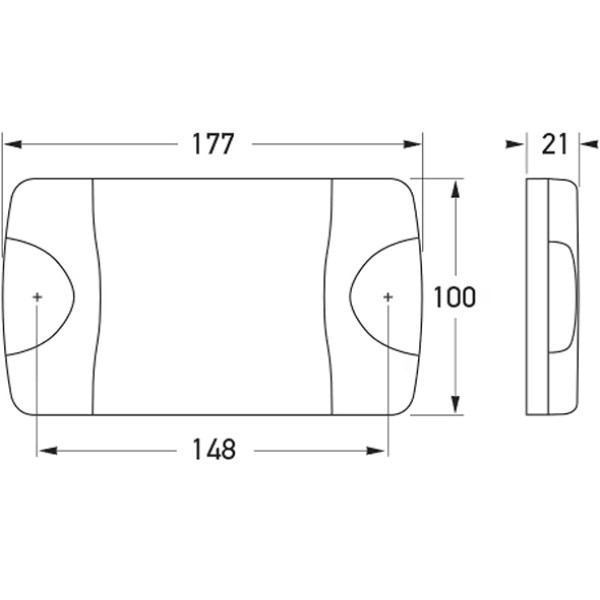

Mounting

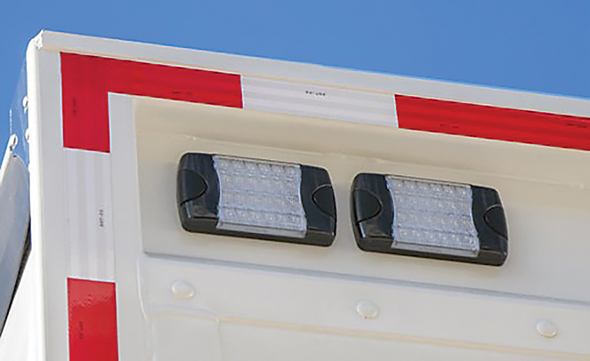

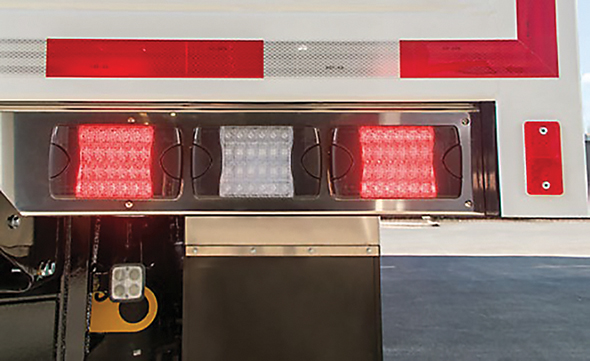

Horizontal and vertical mounting
Surface mounting with mounting bushes supplied

Connection 2.5m of sheathed multi-core cable

DOWNLOAD
INFORMATION SHEET :


DOWNLOAD
INSTALLATION INSTRUCTION​ :

2SB 017 007-201, 2BA 017 006-201, 2ZR 017 008-201
